How to Safely Replace a Hydraulic Return Filter in 8 Steps

Replacing a hydraulic return filter is a critical maintenance task on construction and agricultural machines such as excavators, wheel loaders, tractors, and telehandlers. Hydraulic systems operate under high pressure and are responsible for powering essential machine functions including lifting, steering, braking, and attachment control. Clean hydraulic oil is therefore fundamental to both machine performance and operator safety.

Unlike engine oil or fuel systems, hydraulic systems are particularly sensitive to contamination. Even small amounts of dirt, metal particles, or air can cause accelerated wear, erratic operation, or complete system failure. The hydraulic return filter plays a central role in preventing contaminants generated during operation from circulating back into the hydraulic reservoir and being reintroduced into the system.

This guide explains how professional workshops replace hydraulic return filters safely and correctly. The procedure is aligned with OEM service principles and focuses on contamination control, pressure safety, and long-term hydraulic system reliability.

Why Correct Hydraulic Return Filter Replacement Matters

Hydraulic systems continuously circulate oil through pumps, valves, cylinders, and motors. During normal operation, wear particles from pumps and valves, seal degradation, and external contamination inevitably enter the hydraulic oil. The return filter captures these contaminants as oil flows back to the reservoir, preventing them from re-entering sensitive components.

If the hydraulic return filter is not replaced correctly, or if contamination enters the system during service, several problems may occur:

• Accelerated wear of hydraulic pumps and control valves
• Sticking or erratic valve operation
• Reduced system efficiency and increased heat generation
• Pressure spikes caused by clogged or incorrectly installed filters
• Costly component failures leading to extended downtime

In severe cases, contamination introduced during maintenance can cause system-wide damage that requires flushing and component replacement. Correct replacement of the hydraulic return filter is therefore a critical preventive maintenance activity.

Tools, Materials, and Preparation

Proper preparation is especially important when working on hydraulic systems. Hydraulic oil cleanliness standards are significantly stricter than those for engine oil, and safety risks are higher due to residual pressure.

You will need the following tools and materials:

• A replacement hydraulic return filter that meets OEM specifications
• Clean catch container for hydraulic oil
• Clean, lint-free cloths
• Disposable gloves and appropriate PPE
• Hand tools for opening filter housings or covers
• Absorbent materials for spill control

Before starting the procedure, complete the following preparation checks:

• Verify the filter is specified as a return filter, not a pressure or suction filter
• Confirm correct micron rating and flow capacity
• Identify the location of the return filter (tank-mounted or inline)
• Check whether the filter housing includes a bypass valve or clogging indicator
• Review manufacturer instructions regarding pressure relief and oil level

Using an incorrect filter or servicing the system without relieving pressure can lead to oil discharge, component damage, or personal injury.

Step-by-Step Procedure: Hydraulic Return Filter Replacement

The following procedure is divided into eight clearly defined steps, reflecting professional workshop practice. Each step explains both the action required and the technical reasoning behind it.

Step 1: Shut Down the Machine and Relieve Hydraulic Pressure

The procedure must begin by shutting down the engine and ensuring that all hydraulic pressure is relieved. Even after shutdown, residual pressure can remain trapped in hydraulic circuits.

To relieve pressure:

• Lower all attachments to the ground
• Move hydraulic control levers through all positions with the engine off
• Follow manufacturer-specific pressure relief procedures

Relieving pressure reduces the risk of oil spray and prevents sudden release of pressurized oil during filter removal.

Step 2: Secure the Work Area and Clean the Filter Housing

Before opening the hydraulic system, the work area around the return filter housing must be cleaned thoroughly. Hydraulic return filters are often mounted on or near the reservoir, where dirt and debris can accumulate.

Cleaning the area:

• Prevents contamination from entering the hydraulic tank
• Improves visibility and access
• Reduces cleanup after service

This step is essential for maintaining hydraulic oil cleanliness.

Step 3: Position the Catch Container and Prepare for Oil Loss

When the return filter housing is opened, hydraulic oil will typically drain from the housing and return lines. A suitable catch container should be positioned to collect this oil.

Proper preparation:

• Prevents oil from spilling onto machine components
• Reduces environmental contamination
• Allows inspection of drained oil for signs of contamination

Be prepared for oil flow to be slower or faster depending on tank level and filter location.

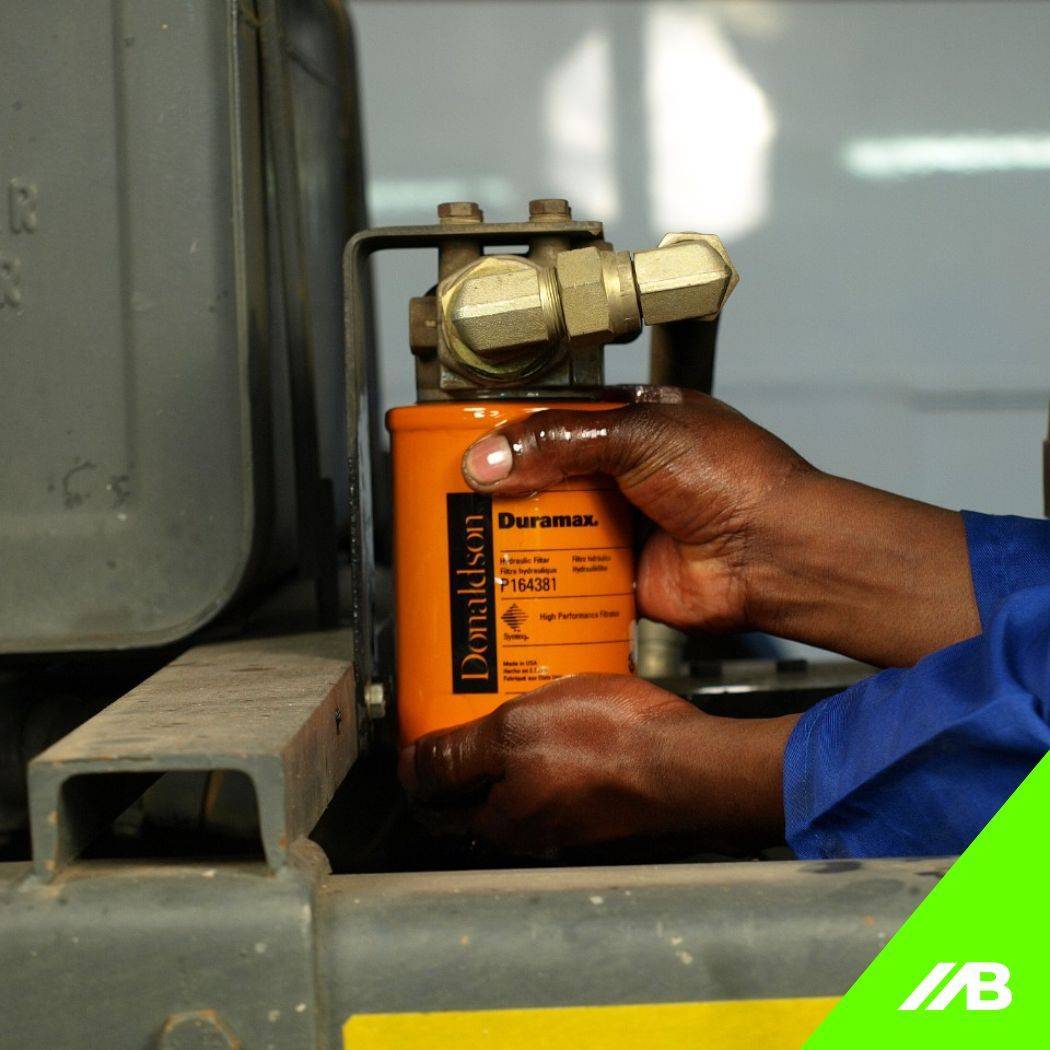

Step 4: Remove the Old Hydraulic Return Filter

The filter housing or cover should be opened carefully according to manufacturer instructions. This may involve loosening a lid, removing a cartridge, or unscrewing a spin-on filter.

During removal:

• Avoid sudden movements that may dislodge debris
• Observe the condition of the filter element
• Check for metal particles, sludge, or excessive contamination

Unusual contamination may indicate internal component wear or system issues that require further investigation.

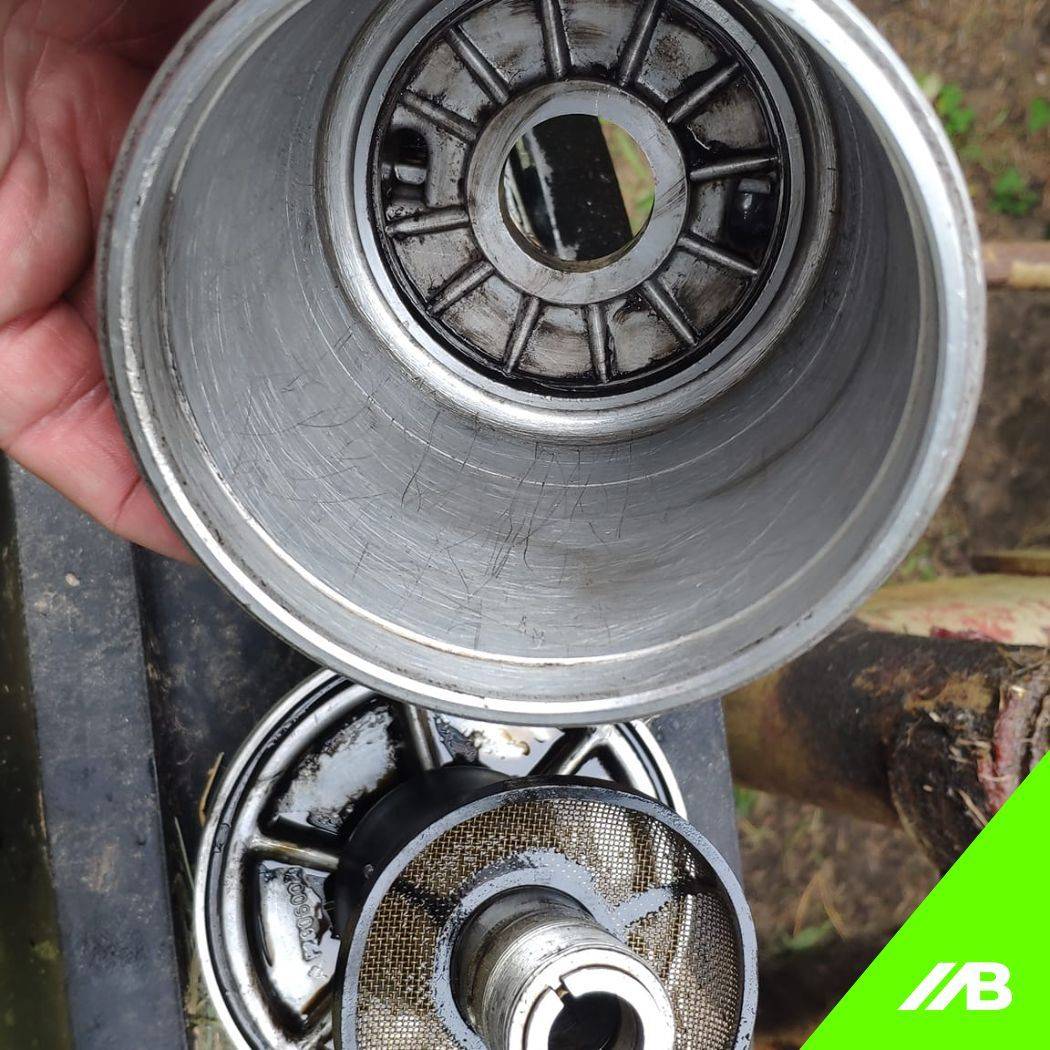

Step 5: Inspect and Clean the Filter Housing

Once the filter is removed, the housing must be inspected and cleaned thoroughly. Any debris left in the housing will be immediately reintroduced into the system once the new filter is installed.

This step includes:

• Removing residual oil and contaminants
• Cleaning sealing surfaces with lint-free cloths
• Inspecting O-rings or seals for damage or wear

Damaged seals must be replaced to prevent air ingress or oil leakage.

Step 6: Prepare and Install the New Hydraulic Return Filter

Before installation, the new filter must be checked to ensure it is clean and undamaged. Protective packaging should only be removed immediately before installation.

Preparation may involve:

• Lightly lubricating seals with clean hydraulic oil
• Ensuring correct orientation of the filter element
• Verifying compatibility with the housing design

Install the filter carefully, ensuring it seats correctly in the housing. Tightening should follow manufacturer specifications to avoid housing damage or leaks.

Step 7: Refill or Adjust Hydraulic Oil Level if Required

Depending on system design, hydraulic oil may need to be replenished after filter replacement. Oil level should be checked according to manufacturer guidelines.

When adjusting oil level:

• Use only the specified hydraulic oil grade
• Avoid overfilling the reservoir
• Ensure oil is clean and free from contamination

Incorrect oil level can affect system performance and temperature control.

Step 8: Start the Machine and Verify Hydraulic System Operation

Once the filter is installed and oil level is correct, the engine can be started. Hydraulic functions should be operated slowly at first.

During verification:

• Monitor for leaks around the filter housing
• Observe hydraulic response and smoothness
• Check filter clogging indicators if present
• Listen for abnormal noises from pumps or valves

Gradual operation allows remaining air to purge from the system safely.

Common Mistakes to Avoid

Hydraulic system maintenance errors can have serious consequences. Common mistakes include:

Failing to relieve hydraulic pressure before opening the system

• Allowing dirt to enter the filter housing during service
• Installing a filter with incorrect micron rating
• Reusing damaged seals or O-rings
• Returning the machine to full load operation immediately

Avoiding these mistakes protects both the hydraulic system and the operator.

Post-Replacement Checks

After the machine has been operated briefly, the following checks should be performed:

• Inspect the filter housing and surrounding area for leaks
• Verify stable hydraulic response during operation
• Monitor system temperature and pressure if available
• Recheck oil level after initial operation
• Inspect the filter clogging indicator during early service hours

Any abnormalities should be addressed immediately before continued use.
