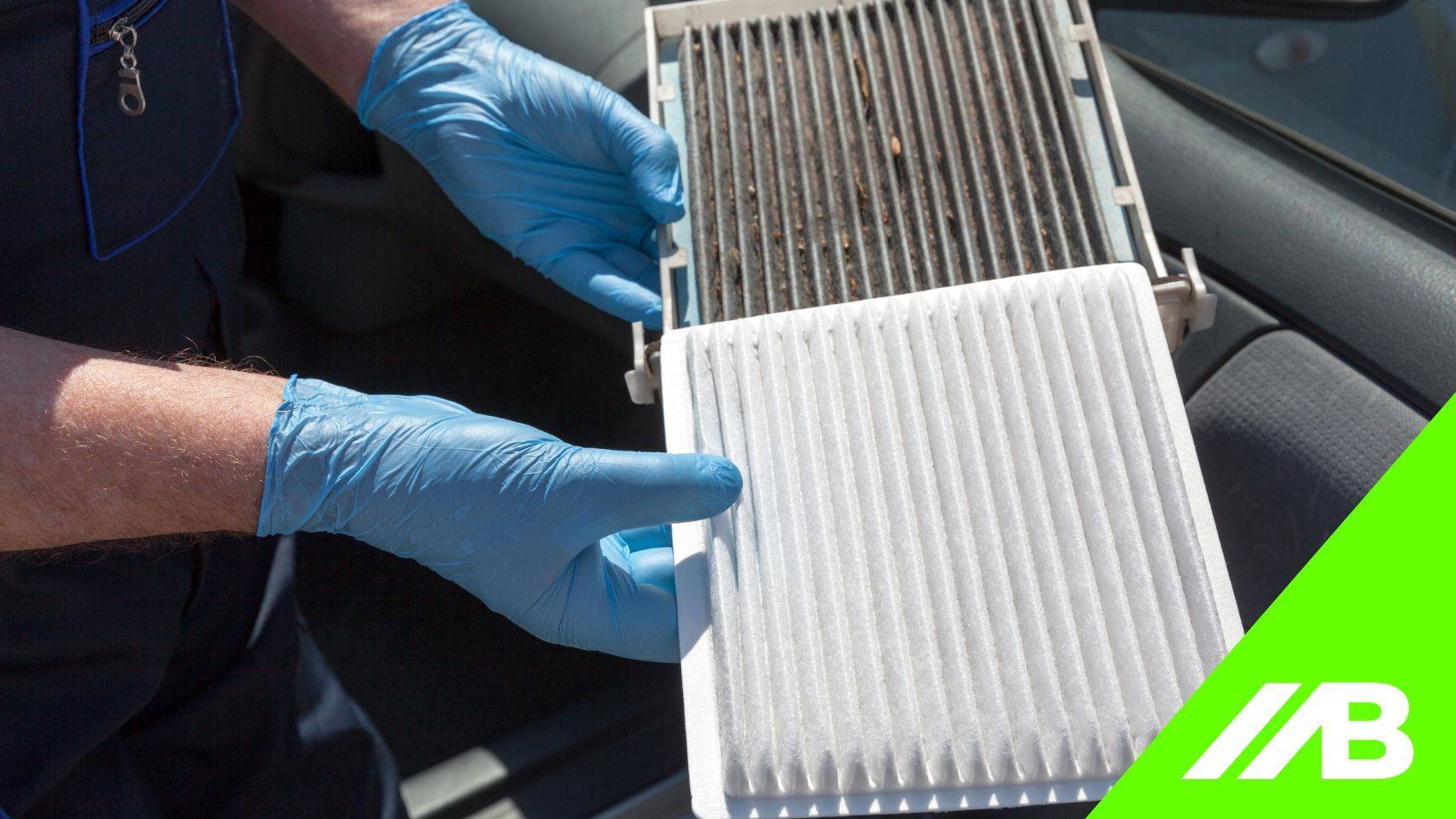

How to Replace a Cabin Filter on a Tractor in 6 Steps

Replacing the cabin filter on a tractor is an essential but often underestimated maintenance task. Modern tractors are increasingly equipped with enclosed cabins that provide protection against dust, pollen, chemicals, and exhaust fumes, while also housing sensitive electronic controls and climate systems. The cabin filter plays a central role in maintaining a clean, pressurized, and comfortable working environment for the operator.

Tractors frequently operate in environments with high levels of airborne contaminants, such as soil dust, crop residues, fertilizers, and pesticides. Over time, these contaminants accumulate in the cabin filter, reducing airflow and filtration effectiveness. If the filter is not replaced at the correct intervals or is installed incorrectly, both operator comfort and machine reliability can be compromised.

This guide explains how professional workshops replace cabin filters on tractors, following OEM-aligned service principles. The procedure focuses on cleanliness, correct installation, and verification to ensure effective cabin air filtration and long-term HVAC system performance.

Why Correct Cabin Filter Replacement Matters

The cabin filter is responsible for filtering the air that enters the operator’s cab through the heating, ventilation, and air conditioning (HVAC) system. Its primary functions are to remove dust, pollen, spores, chemical particles, and other airborne contaminants before they reach the operator or sensitive cabin components.

As the filter becomes loaded with dirt, several issues can develop:

• Reduced airflow through the HVAC system
• Decreased heating and cooling efficiency
• Fogging of windows due to insufficient air circulation
• Increased operator fatigue and discomfort
• Accumulation of dust inside the cabin
• Potential damage to HVAC blowers and evaporators

In tractors used for spraying or working in chemically treated fields, a clogged or unsuitable cabin filter can also reduce protection against harmful substances. Correct replacement is therefore important not only for comfort, but also for operator health and safety.

Tools, Materials, and Preparation

Cabin filter replacement is generally a clean and straightforward procedure, but proper preparation ensures that contaminants are not introduced into the HVAC system during service.

You will need the following tools and materials:

• A replacement cabin filter specified for the tractor model
• Clean, lint-free cloths
• Disposable gloves
• A small vacuum cleaner or low-pressure air source (if permitted)

Before starting the replacement, complete the following preparation checks:

• Verify the correct filter type (standard dust filter, activated carbon, or chemical filter)
• Confirm the correct airflow direction indicated on the filter
• Identify the cabin filter access location (roof, rear panel, or under-seat area)
• Ensure the engine and HVAC system are switched off
• Review manufacturer recommendations for service intervals

Using the wrong cabin filter type or installing it in the wrong orientation can significantly reduce filtration efficiency.

Step-by-Step Procedure: Cabin Filter Replacement

The following procedure is divided into six clearly defined steps, reflecting standard professional service practice. Each step explains both the action and its technical importance.

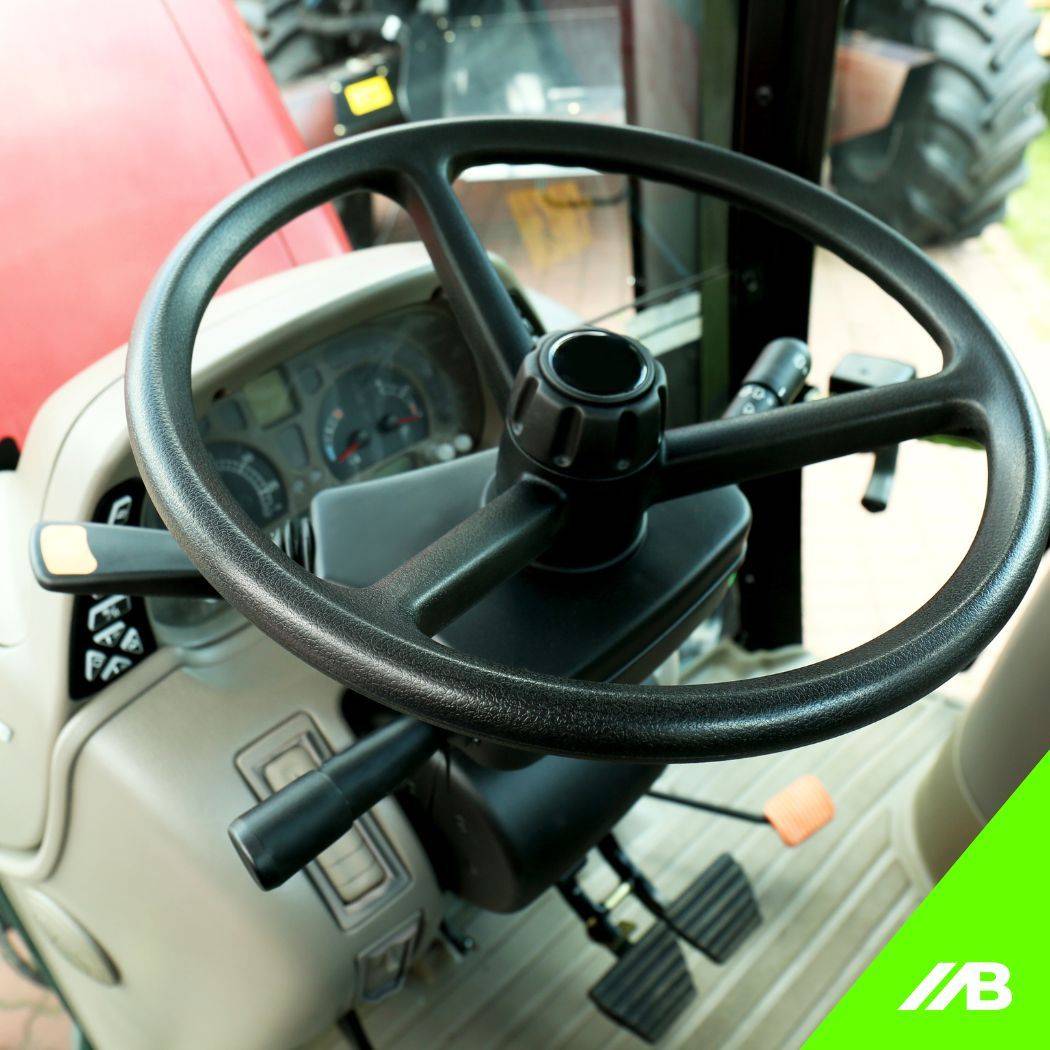

Step 1: Shut Down the Engine and HVAC System

The procedure begins by shutting down the tractor engine and ensuring that the HVAC system is switched off. This prevents air from being drawn through the system while the filter housing is open.

Switching off the system:

• Prevents dust from entering the HVAC ducts
• Protects the blower motor from ingesting debris
• Improves safety and control during service

Allow the system to remain off throughout the filter replacement process.

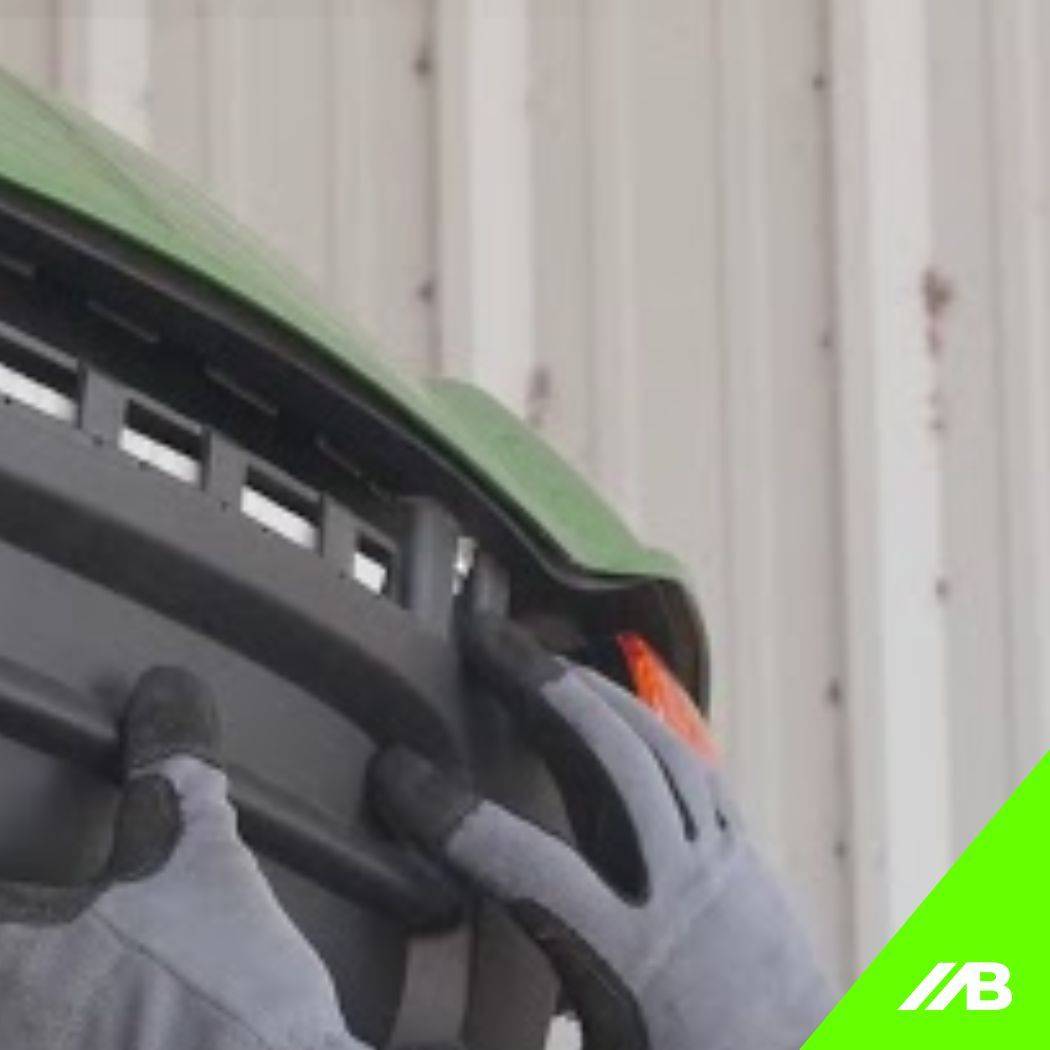

Step 2: Locate and Access the Cabin Filter Housing

Cabin filter housings are typically located on the roof of the cab, behind an external cover, or inside the cab near the HVAC intake. The exact location varies by tractor model.

When accessing the housing:

• Remove covers or panels carefully
• Keep track of fasteners or clips
• Avoid forcing components that may be brittle or contaminated

Correct access prevents damage to housing seals and ensures proper reassembly.

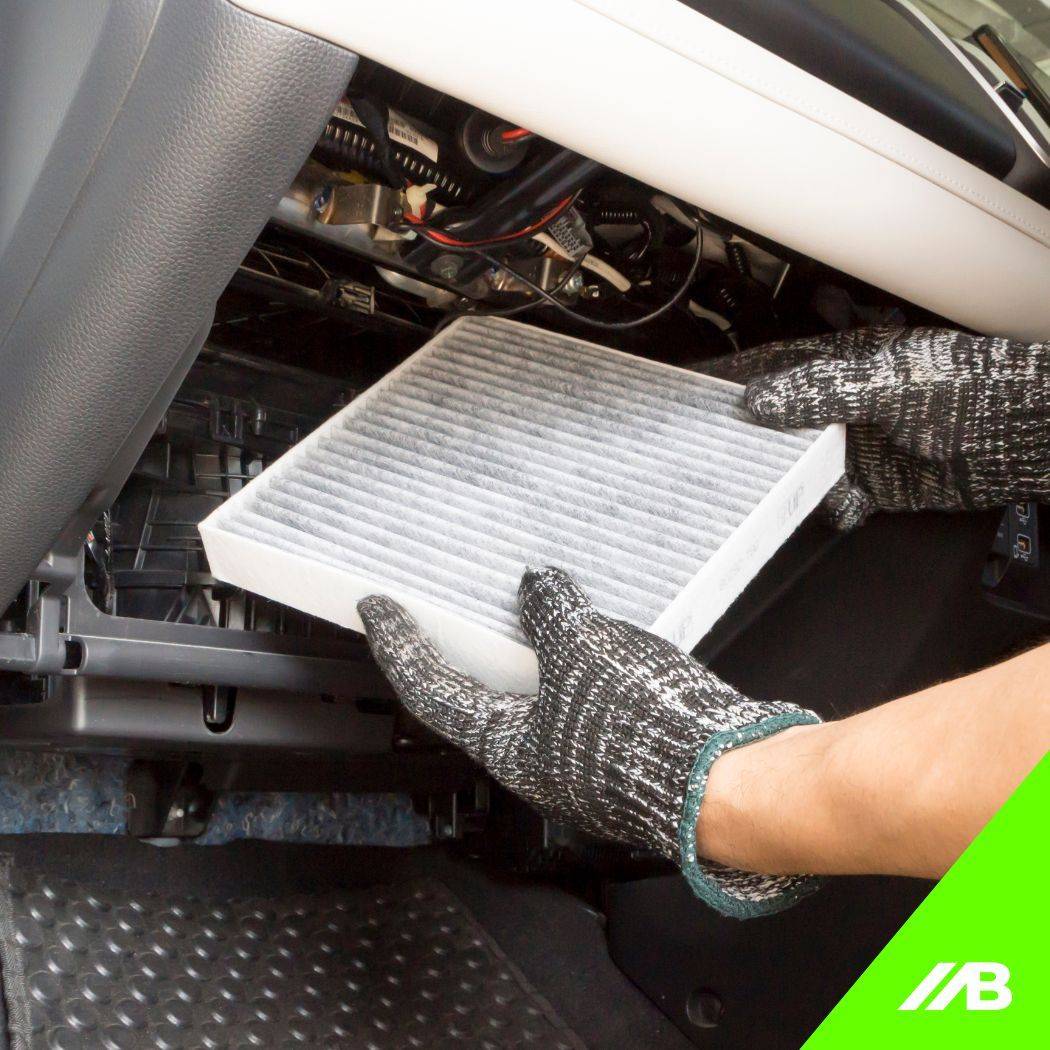

Step 3: Remove the Old Cabin Filter Carefully

The old cabin filter should be removed slowly and kept upright where possible. Cabin filters often contain fine dust and debris that can be released if the filter is shaken or tilted.

During removal:

• Avoid knocking the filter against the housing
• Observe the level and type of contamination
• Note the airflow direction marked on the filter

Heavy contamination or moisture may indicate extended service intervals or intake sealing issues.

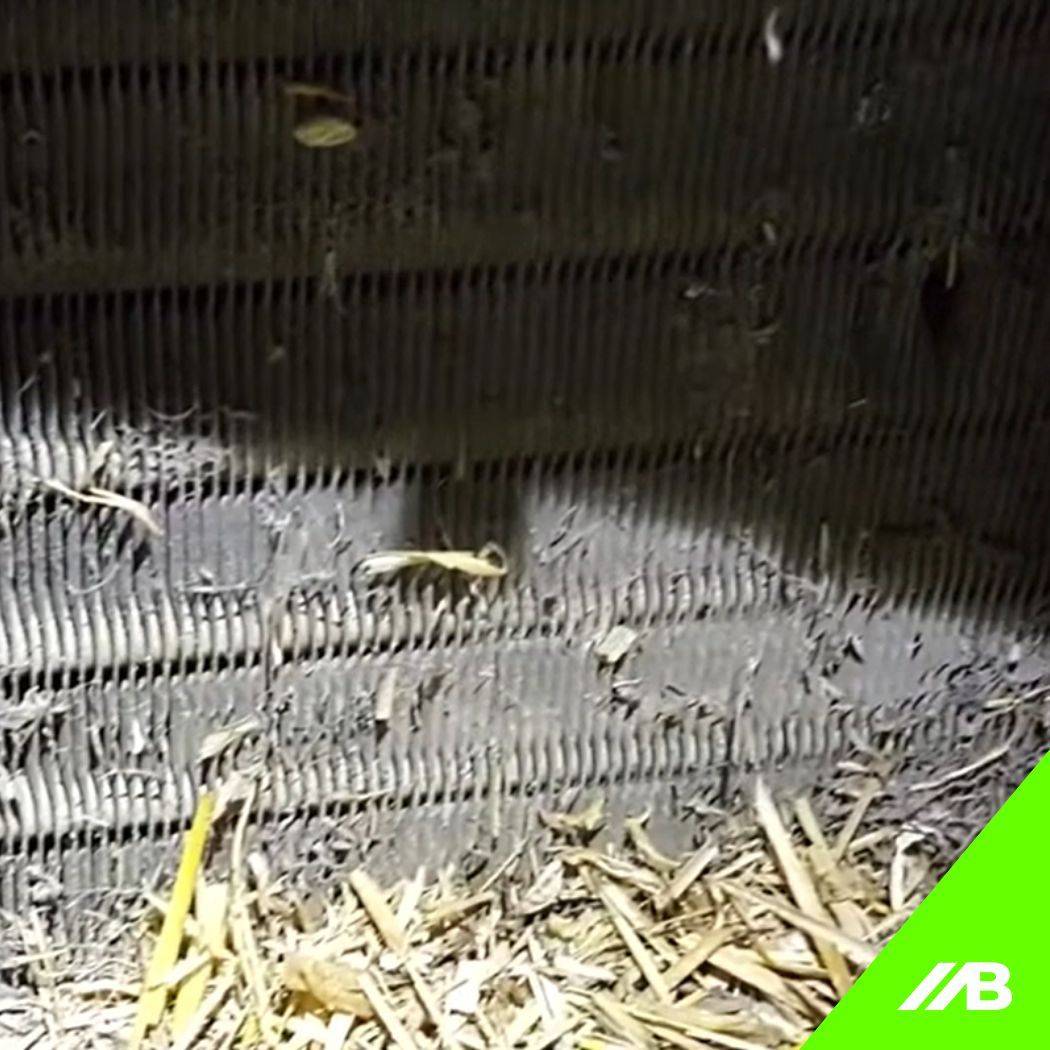

Step 4: Inspect and Clean the Filter Housing

After removing the old filter, the filter housing and surrounding area should be inspected and cleaned.

This step includes:

• Removing loose dust and debris from the housing
• Checking seals and gaskets for damage
• Ensuring the air intake path is unobstructed

Cleaning the housing prevents dirt from bypassing the new filter and entering the cabin or HVAC components.

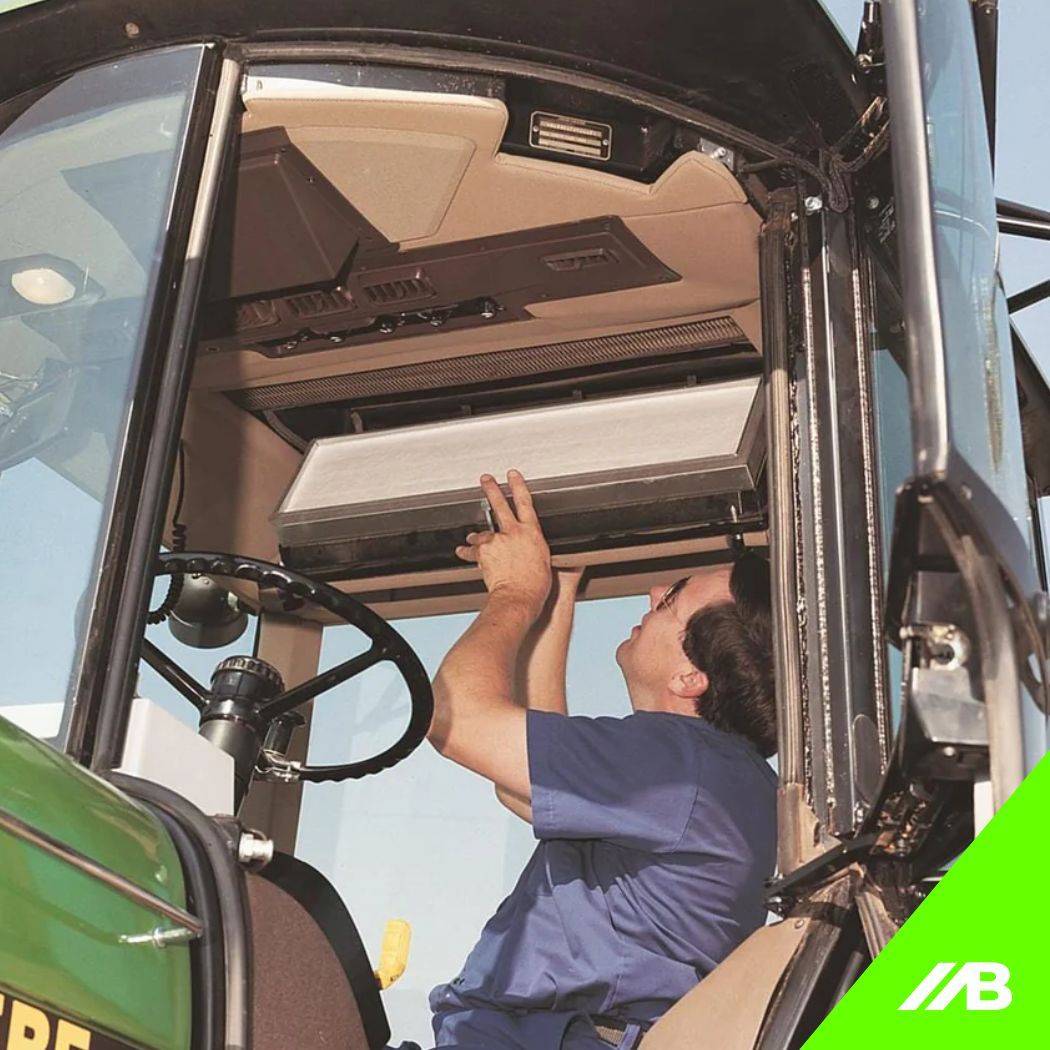

Step 5: Install the New Cabin Filter Correctly

Before installation, remove the new filter from its packaging only when ready to install. Ensure that the airflow direction arrow on the filter matches the airflow direction indicated on the housing.

During installation:

• Insert the filter evenly without bending
• Ensure the filter seats fully against the sealing surface
• Avoid touching the filter media unnecessarily

Correct orientation and seating are critical for effective filtration and airflow.

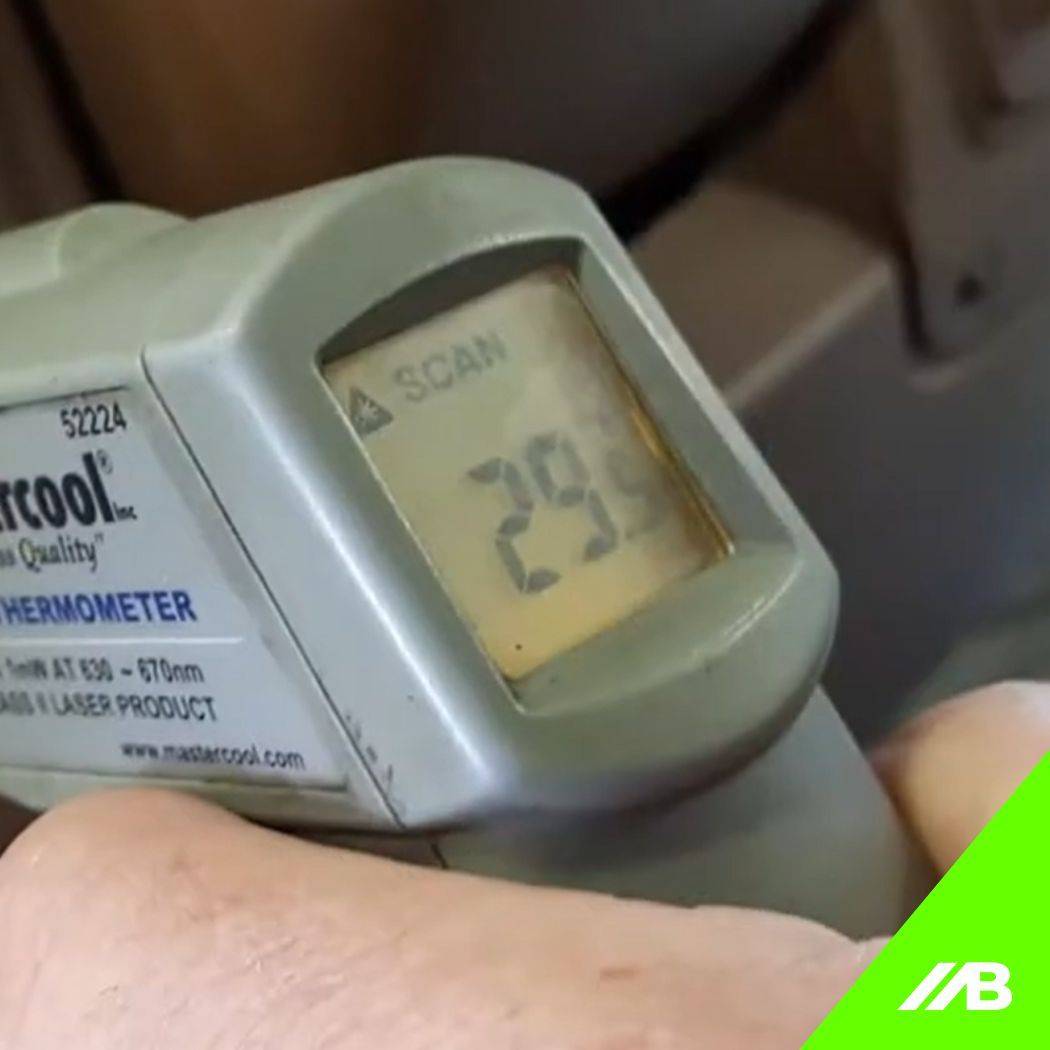

Step 6: Close the Housing and Verify Operation

Once the new filter is installed, refit all covers or panels securely. Ensure that all clips or fasteners are properly engaged.

After reassembly:

• Start the engine
• Switch on the HVAC system
• Check for normal airflow and noise levels
• Verify that windows clear properly during operation

Normal airflow and quiet operation indicate correct installation.

Common Mistakes to Avoid

Cabin filter service errors are common due to the simplicity of the task. Typical mistakes include:

• Installing the filter in the wrong airflow direction
• Using a filter not designed for the tractor or application
• Allowing dirt to fall into the HVAC intake
• Skipping housing inspection and cleaning
• Extending service intervals beyond recommendations

Avoiding these mistakes ensures proper cabin air quality and HVAC system performance.

Post-Replacement Checks

After the tractor has been operated briefly, perform the following checks:

• Confirm steady airflow from all vents
• Check for unusual noises from the HVAC blower
• Inspect the filter housing for proper sealing
• Monitor cabin air quality during operation
• Recheck housing covers after the first workday

Any abnormalities should be addressed before continued use.

Choosing the Right Cabin Filter

Cabin filters differ in filtration type, airflow resistance, and protective capability. Some filters are designed primarily for dust, while others include activated carbon or chemical filtration layers for additional protection.

The replacement filter must match the tractor manufacturer’s specifications and the operating environment. Using a filter designed for the wrong application can reduce airflow or fail to provide adequate protection.
