Improving Fuel Efficiency with Proper Filter Maintenance

Fuel efficiency in heavy machinery is commonly associated with operator behavior, engine tuning, or machine selection. While these factors are important, one of the most consistent and controllable drivers of fuel consumption is often overlooked: filter condition.

Air, fuel, and oil filters directly influence how efficiently an engine converts fuel into usable work. When filters are restricted, degraded, or incorrectly specified, the engine must expend additional energy to overcome these inefficiencies. Modern engine management systems can compensate for some of these losses, but compensation is not free, it consumes fuel.

Understanding how filter maintenance affects fuel efficiency requires looking beyond obvious failures and focusing on the subtle, cumulative losses that occur when filtration performance declines.

Why Fuel Efficiency Is Strongly Influenced by Filtration Quality

An engine’s efficiency depends on how effectively it moves air, fuel, and lubricating oil through its systems. Filters sit directly in these flow paths. Any restriction introduced by filtration increases resistance, forcing pumps, turbochargers, and the engine itself to work harder.

These additional efforts translate into parasitic losses, energy consumed internally that does not contribute to useful output. Individually, these losses may appear small. Over thousands of operating hours, however, they result in measurable increases in fuel consumption and operating cost.

Proper filter maintenance minimizes these losses by keeping flow resistance within the range the engine was designed to tolerate.

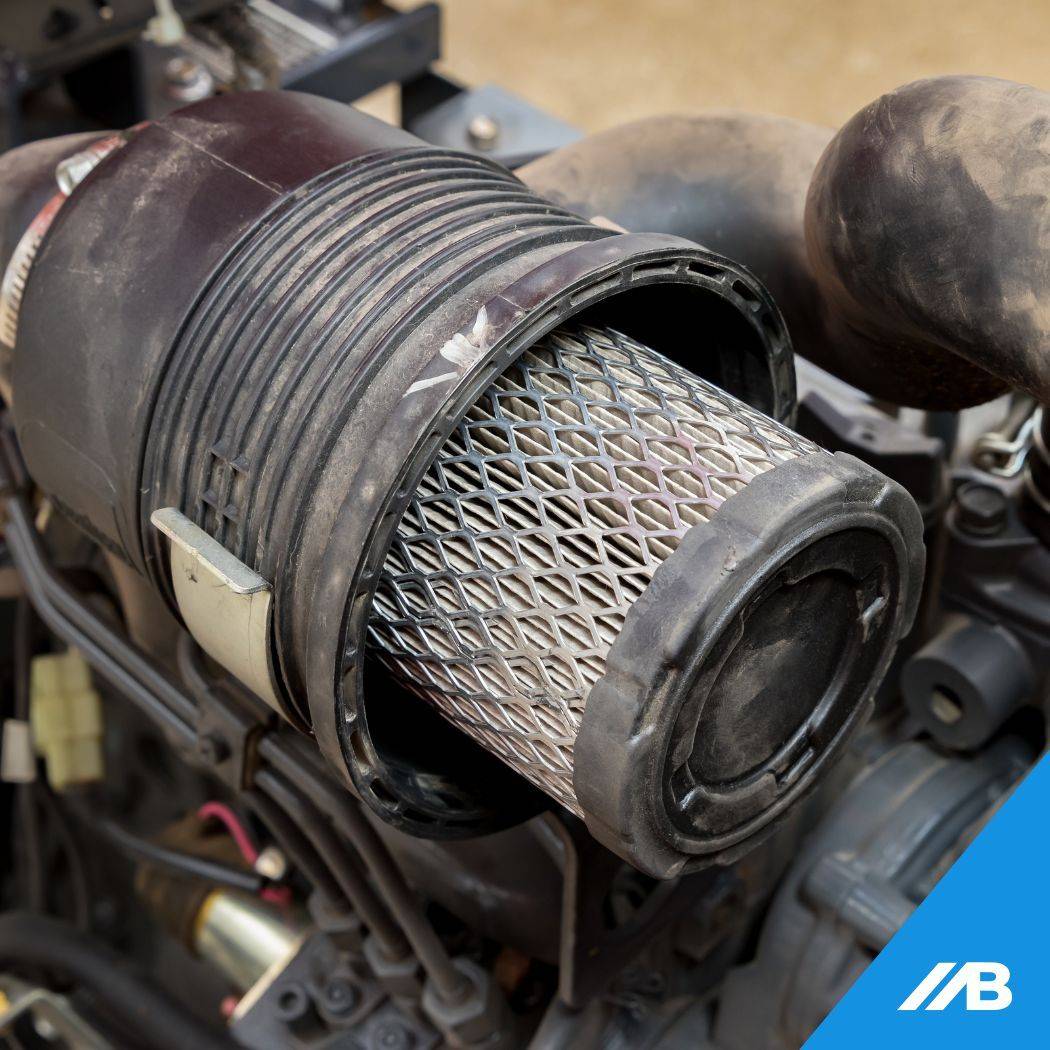

Air Filtration and Combustion Efficiency

Air filters have the most immediate and visible impact on fuel efficiency. As intake restriction increases, less air reaches the combustion chamber for a given throttle position. Modern engines respond by adjusting fuel delivery and turbocharger behavior to maintain power output.

These compensations are effective within limits, but they come at a cost. Turbochargers must work harder to achieve target boost, increasing exhaust backpressure and heat. Fuel injection timing and quantity are adjusted to stabilize combustion, often resulting in richer mixtures under load.

The net effect is higher fuel consumption for the same work output. Because power remains available, operators may not notice the efficiency loss until fuel usage data is analyzed over time.

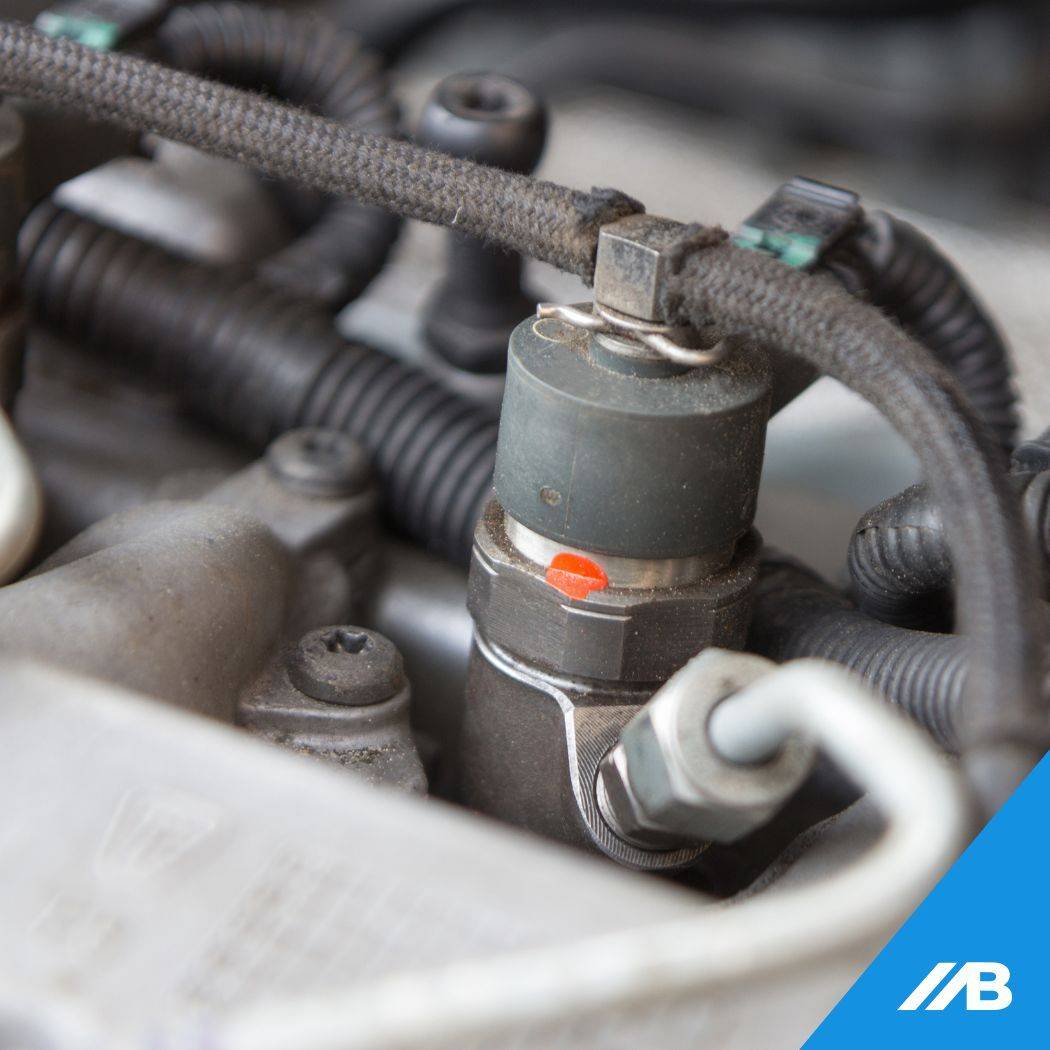

Fuel Filtration and Injection Precision

Fuel filtration plays a critical role in maintaining injection system efficiency. Modern diesel injection systems operate at extremely high pressures and rely on precise spray patterns to achieve efficient combustion.

When fuel filters become partially restricted, pressure stability suffers. Even small pressure fluctuations alter injector behavior, leading to poorer atomization and less complete combustion. The engine compensates by increasing fuel delivery to maintain torque, increasing consumption.

In addition, contamination that bypasses or overloads fuel filters accelerates injector wear. As injectors degrade, spray patterns worsen further, compounding efficiency losses long before outright failure occurs.

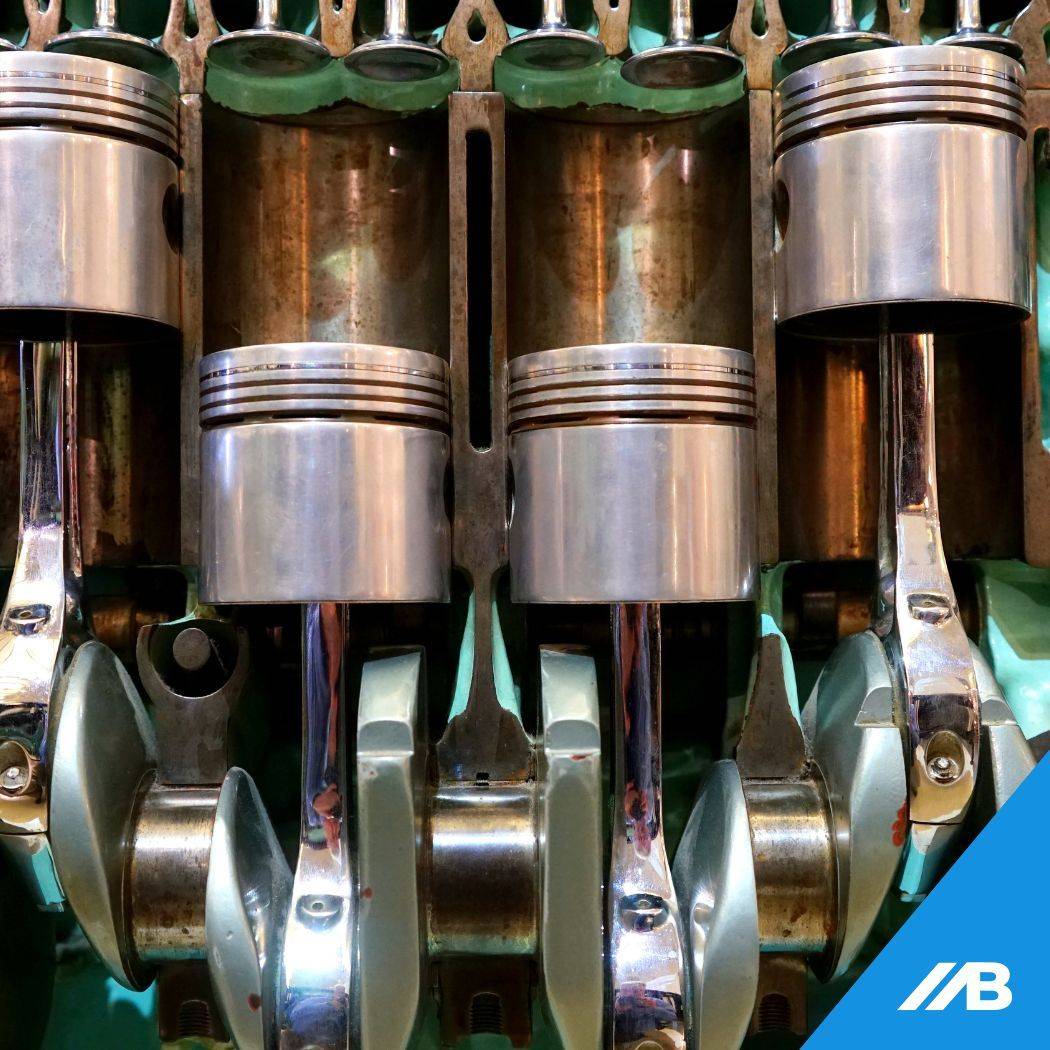

Oil Filtration and Internal Friction Losses

Oil filtration affects fuel efficiency indirectly through its impact on lubrication quality and internal friction. Clean oil maintains stable viscosity and additive performance, reducing drag between moving components.

When oil filters are overloaded or bypassing frequently, contaminants circulate longer. These contaminants increase friction, disrupt oil films, and accelerate oil degradation. As oil thickens or oxidizes, pumping losses increase, requiring more engine power to circulate lubricant.

The engine burns additional fuel to overcome this internal resistance, even though no external symptoms may be apparent.

How Filter Restriction Increases Engine Workload

Every restricted filter increases the workload on a system component. Air restriction increases turbocharger workload. Fuel restriction increases pump effort. Oil restriction increases pumping losses.

These effects are additive. A machine with partially restricted air, fuel, and oil filters may experience multiple small efficiency penalties simultaneously. Each penalty is minor on its own, but together they can increase fuel consumption by several percentage points.

Because modern engines are designed to mask performance loss, these penalties often go unnoticed during operation.

Filter Maintenance vs Engine Management Compensation

Modern engine control units (ECUs) are highly effective at compensating for suboptimal conditions. They adjust fuel delivery, boost pressure, and timing to maintain power and drivability.

However, ECU compensation does not restore lost efficiency, it trades efficiency for stability. The engine continues to perform, but it consumes more fuel to do so. Over time, this compensation strategy increases operating cost while hiding the underlying cause.

Relying on engine management to compensate for poor filtration shifts cost from maintenance to fuel, which is often far more expensive.

The Cumulative Fuel Cost of Poor Filter Maintenance

Fuel efficiency losses caused by filtration issues are typically incremental. A 5–7% increase in fuel consumption may not be noticed in daily operation, but over thousands of hours it becomes significant.

For fleets operating multiple machines, these small inefficiencies scale rapidly. The cumulative fuel cost of delayed filter replacement often exceeds the cost of proactive maintenance many times over.

From a total cost of ownership perspective, proper filter maintenance is one of the most cost-effective fuel-saving measures available.

Diagnostic Indicators That Link Filters to Fuel Consumption

Several diagnostic indicators help identify filtration-related efficiency losses. Increasing air restriction readings, rising exhaust temperatures, more frequent regeneration cycles, and unexplained increases in fuel usage all point toward filtration issues.

Fuel consumption trends are particularly revealing when analyzed alongside maintenance records. Sudden or gradual increases in fuel usage following extended filter intervals often correlate directly with restriction buildup.

Using diagnostics to connect these data points enables targeted corrective action rather than generalized troubleshooting.

Optimizing Filter Maintenance for Fuel Efficiency

Improving fuel efficiency through filter maintenance requires coordination. Air, fuel, and oil filters should be serviced as an integrated system rather than independently.

Replacement timing should be based on condition and exposure rather than fixed hours alone. Filters that are overextended increase fuel consumption long before they cause performance loss. Conversely, replacing filters too early wastes resources without improving efficiency.

The goal is to keep filters operating within their optimal flow range as consistently as possible.

Filter Selection Choices That Support Fuel Efficiency

Filter selection also influences efficiency. Filters must balance filtration performance with flow stability. Overly restrictive filters may protect well but impose higher pumping losses. Filters with insufficient capacity load quickly and restrict flow prematurely.

Selecting filters that match OEM flow requirements and operating conditions supports both protection and efficiency. High-efficiency filters can improve wear control, but only if the system can manage the associated restriction without excessive bypass activity.

Efficiency gains depend on system balance, not isolated upgrades.

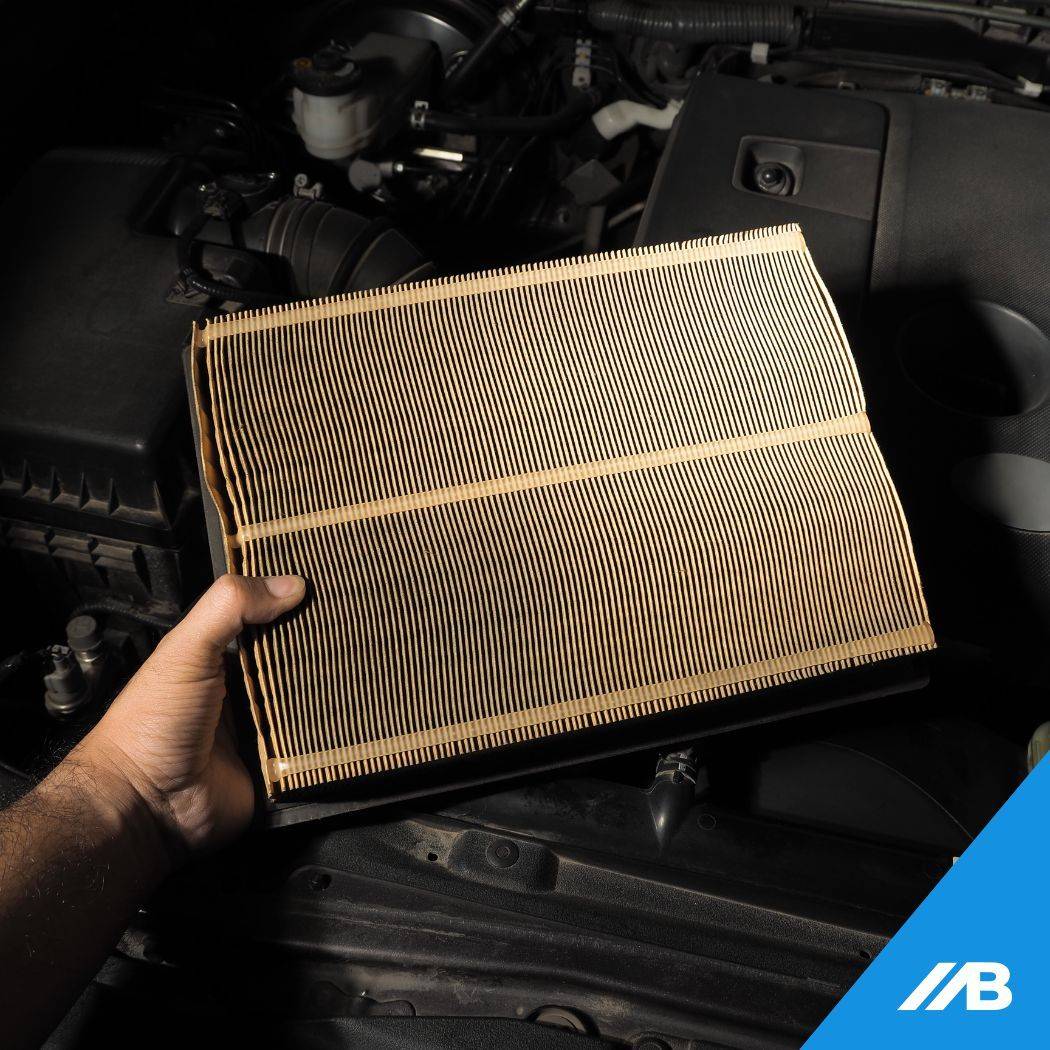

Fuel Efficiency as a Maintenance Outcome

Fuel efficiency is not determined solely by engine design or operator behavior. It is the outcome of many interacting factors, including filtration condition.

Proper filter maintenance reduces hidden resistance, minimizes parasitic losses, and allows engines to operate closer to their designed efficiency. These benefits accumulate quietly but consistently, delivering measurable fuel savings over time.

In heavy machinery, where fuel represents a major operating cost, filter maintenance is not just a reliability task, it is a strategic efficiency measure. By maintaining filters proactively and intelligently, fleets can reduce fuel consumption without changing machines, operators, or workloads.
